Trolley for large load carriers (LLC) 0.6 - 1.6t

1600 kg

Usable without the use of additional devices
Suitable for all Jungheinrich trailers
Available in different sizes and carrying capacities
Ball bearings and hard tread for low rolling resistance
Quiet and low-wear operation

Trolley

Our handy and flexible trolleys are ideal for transporting loads up to 1.6 tonnes per trailer and are optimally matched to the Jungheinrich GTE trailers. The trolleys easily move large load carriers (LLC) from A to B, e.g. in a tow train loaded with pallets or pallet cages. The lift platform helps the trolleys to be easily and safely pushed into the trailers and lifted during transport. Low rolling resistance makes for quiet operations and precise lane guidance. Different sizes and capacities guarantee high flexibility in any application. The easy handling of the trolleys and the low effort required for manual reaching allow comfortable working. Besides our wide range of tow tractors, trailers and trolleys, we also offer you integrated tow train system advice to optimise your warehouse logistics to the maximum.

Features

Efficient operation

4 steering rollers, two of which are diagonally braked with wheel locks.
Large wheels made of polyamide with ball bearings for easy manual pushing.
An ESD wheel with electrical conductivity.

Safe and ergonomic

Various features make it easier to handle heavy and bulky loads.
Attachable handles provide grip at an ergonomic height.
Beam extensions make it easier to access loads without having to bend down.
Lockable steering roller for directional stability when pushing manually.

Equipment and additional options

Loads for 600 kg, 1200 kg and 1600 kg.
Dimensions in 1200 x 800 mm and 1200 x 1000 mm.

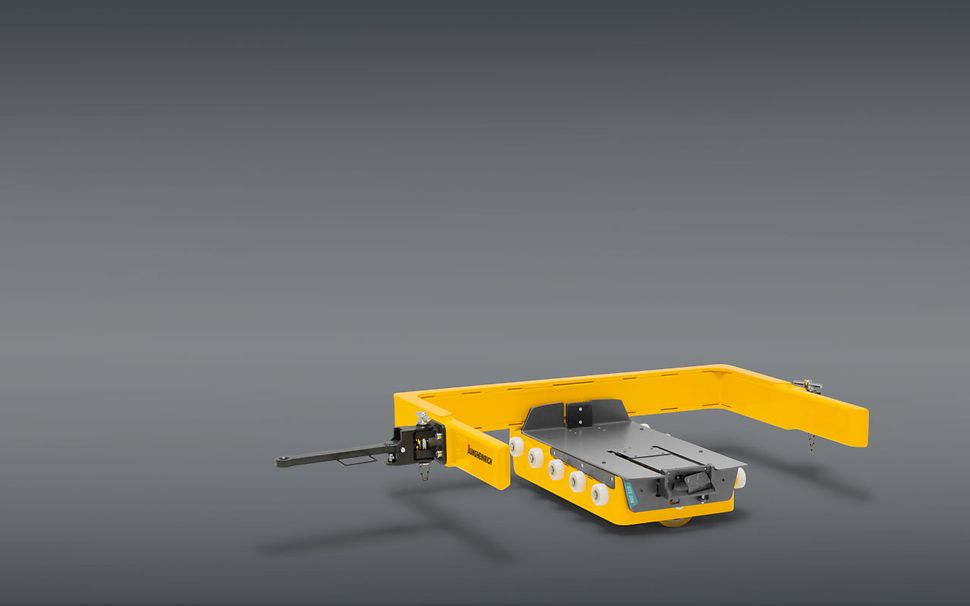

Trolleys for the mechanical GTE 106.
Clip-on push handle.
Parking brake with fixed brake pedal.
Locking rollers for easier handling of heavy loads.
Beam extension for ergonomic unloading of large load carriers.
Wooden floor with optional rubber mat to ensure that smaller loads can also be transported securely.q


Trolley_Studio_--_Front-Left-Option-Handschiebebuegel-und-Auflagenerhoehung_[EPIM-220678].jpg


Model Overview

Model	Load capacity	Travel speed	Overall length
RW 0,6t 1200x800	600 kg	0 km/h	1,255 mm
RW 0,6t 1200x1000	600 kg	0 km/h	1,255 mm
RW 1,2t 1200x800	1,200 kg	0 km/h	1,255 mm
RW 1,2t 1200x1000	1,200 kg	0 km/h	1,255 mm
RW 1,6t 1200x800	1,600 kg	0 km/h	1,255 mm
RW 1,6t 1200x1000	1,600 kg	0 km/h	1,255 mm
