Pedestrian pallet truck 2.0t

540 mm
2000 kg

Additional mast lift for ergonomic work
Powerful and maintenance-free 3-phase AC motors
Compact and manoeuvrable due its short chassis length
Full manoeuvrability with vertical tiller
Strong acceleration and high speed

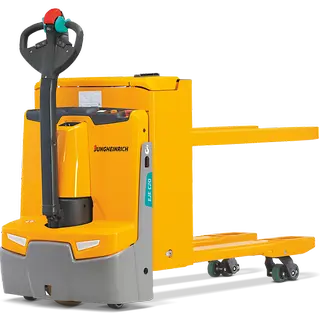

EJE C20

Our agile and ergonomic electric pedestrian pallet trucks EJE C20 offer flexible support in every situation where lighter goods have to be moved and order pickups take place. Additionally to the regular support lift the EJE C20 are equipped with an integrated mast lift that can lift goods to an overall height of 752 mm. With the mast lift, goods can be lifted to a comfortable height for quick and ergonomic order pickup and also the removal of a half-pallet is done quickly and efficiently. With these characteristics, the EJE C20 are perfectly equipped for retail companies. Since goods have to be moved particularly quickly in retail, the EJE C20 offer high speed and strong acceleration while maintaining low operating costs. For perfect energy management, the EJE C20 series is also available with our lithium-ion technology. Safety is always our concern. The low-mounted, long tiller ensures the truck maintains a safe distance from the operator. And if it gets really tight, a crawl speed button allows safe travel with a vertical tiller.

Benefits

Connected Trucks

Use the data from your trucks to save time, energy and money and increase efficiency. Our Telematics box (ex factory) provides you with a free fleet management starter package that can be flexibly expanded with various hardware and software components.

Features

Efficient 3-phase AC technology

High efficiency levels with excellent energy management.
Powerful acceleration.
Continuous smooth control of travel speed via the travel switch.
Rapid direction change.
No carbon brushes – maintenance-free drive motor.
2-year warranty on driving motor.

Professional battery management

Battery capacities of up to 250 Ah guarantee long operating times.
2 PzB 200 Ah batteries for vertical battery exchange.
Lateral battery exchange (optional) for 2 PzB 250 Ah batteries.

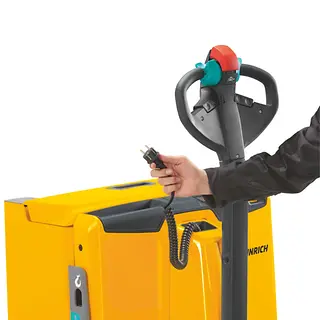

Built-in charger (24 V/30 A for wet cell batteries and maintenance-free batteries) for easy charging at any power outlet (optional).

Available with lithium-ion technology

High availability thanks to extremely short charging times.
No battery exchange required.
Saving costs due to longer service life and zero maintenance as compared to lead-acid batteries.
No charging rooms and ventilation required as there is no build-up of gas.

Safe pallet handling

Side entry into empty euro or closed pallets thanks to enclosed skids on both fork tips.
To remove a half pallet from a Euro pallet.
Semi / quarter pallets from Euro pallets (optional).

Optimum cornering

Sprung and cushioned support wheels – linked via the ProTracLink torsion bar – distribute equalising forces dependent on travel conditions.
Perfect for loading and unloading HGV as well as the work on ramps.
Evenly over all wheels during straight-line travel.
Concentrated on the outer support wheel when cornering.

Lower maintenance costs

Maintenance-free 3-phase AC drive motor without carbon brushes.
Easy access to all components through one-piece front cover secured by only two screws.
Excellent protection against dust and humidity through IP 54 enclosure of controller and plugs.
Reduced support wheel wear when approaching ramps at an angle thanks to level equalisation.

Always informed

Adjustable travel parameters via CanDis and CanCode (optional).
CanDis information display (optional) with additional service hour display and service data storage.
Discharge indicator (3-colour LED) with lift cutout.
Activation of truck via PIN and selection of 3 travel programs via CanCode (optional).

Impulse control

The speed set by the drive switch is maintained under all travel conditions – even on gradients / descents.
Automatic braking in the event of unintentional rolling on ramps.
Individually adjustable travel parameters (acceleration, top speed, motor brake) facilitate optimum adjustment to suit any requirement.
3 different travel programs can be selected (optional).
Energy recovery due to regenerative braking when decelerating.
Very low noise level during travel.

Additional features
